Omni Esk8 CNC Battery Box | Top Mounted Enclosure | DIY Electric Skateboard

Name: Omni Esk8 CNC Battery Box | Top Mounted Enclosure | DIY Electric Skateboard
Brand: omniesk8
SKU: OEDT07-S CNC裤裆雷电池盒（不带电池）
Price: 369.0 USD
Availability: InStock

omniesk8

Option: Omni Battery Box | Top Mounted Enclosure(Box Only)

Battery : None

Variant

Price:

$369.00

Quantity:

Credit Card and Paypal Payment are supported

Availability: In Stock

Fast Shipping / Ship by air(7-12 workdays)

All $50+ orders fly free & Tax Included

Share this product

Model	Omni Esk8 CNC Battery Box
Material	Aluminum Magnesium Alloy
Color	Iron Grey
Weight	1000g/2.2lbs
Charging Port	DC 5.1*2.5
USB Port	QC 3.0 USB Port *2 (Fast Charging)
Built-in PCB	Central control, not just serve as an enclosure
1/4" Screw Hole	Fit any action camera mounting

Top Features

CNC aluminum matte grey finish
Top mounted setup / Sleek layout
Built-in PCB(central control), not just serve as an enclosure
Breathing light and smart battery display equipped
Charge all your device through QC 3.0 port
Easy installation/Plug and play
IP55 waterproof

Compatibility

Huge volume of 56x 21,700 batteries
Able to be installed in any longboards/all terrain boards/mountain boards
Fit any action camara mounting

Omni Battery box

Package List

Omni Esk8 Battery Box x1
Battery Adhesive Holder x4
Drill(related tools) x1
XT90 Connector x1
Multi-function Allen Wrench x1
All Bolts/Screws Included

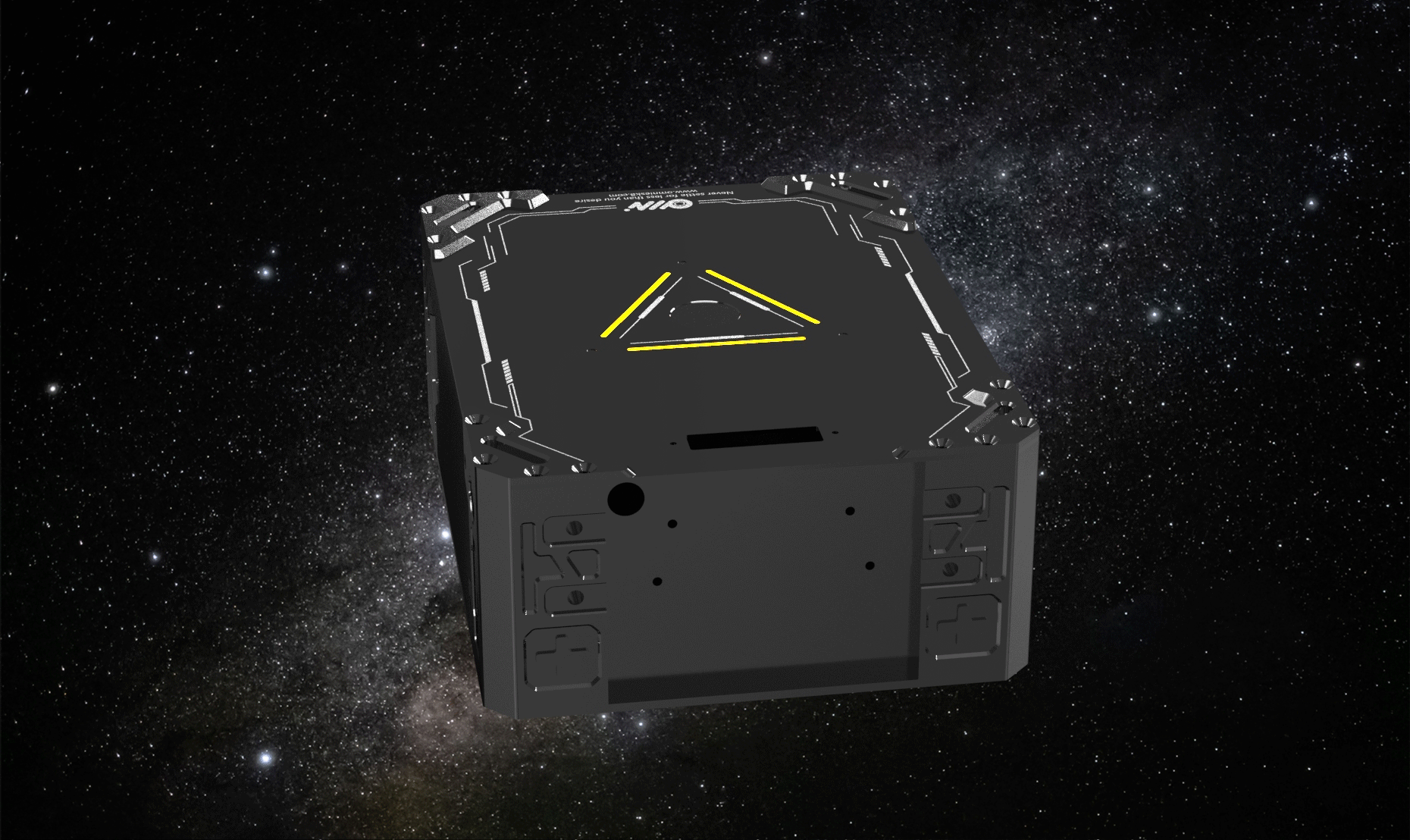

🔋 Battery Box Design Concept
- The Omni Esk8 battery box was specifically designed for DIY riders and individuals seeking to significantly increase their electric skateboard's range.

  The battery case itself is a matte gray made of CNC aluminum, designed to be durable. CNC machining allows the precise-cut side panels to be perfectly inserted and interlinked, thus tightly attached to the box, giving an incredibly neat and tight overall structure.

  Multiple function——With three breathing lights, a display that accurately displays real-time power, a usb port for reverse charging and various sockets on the side, this battery case can do more than just boost its range!

  Huge battery capacity——The Omni Esk8 Battery Case is large enough that this battery case has a capacity of up to 56x 21,700 batteries. At the same time, the reverse charging function can provide more possibilities and help for outdoor activities, and the Omni Esk8 Battery Case can do much more than imagined!

  Widely applicable and easy to disassemble——The clever design of the clasp allows it to complete the removal in a very short time and greatly improves the adaptability of the Battery box, which makes the Omni Esk8 Battery Case stand out from the competition, and It is possible to get a Omni deck with insert screws according to the battery box type when ordering.

🔋 Battery Indicator Adjustment Instructions

🔋 Before Using
- ⚙ Installation
  - Battery box requires drilling when installing. (If you would like to order an Omni 3K carbon fiber deck with insert screws, feel free to contact us.)
  - The onboard battery indicator requires adjustment for the first time based on the specific battery configuration you are using.
  - XT90 Extension cable needed for the connection(battery & ESC).
  ⚙ Compatibility
  - Note that all electric skateboards, including Omni's boards, utilize lithium batteries. This is not exclusive to Omni items, as it applies to all consumer electronics powered by lithium batteries.
  - The battery is not included in the package. Before placing your order, please ensure that you have the correct size of battery. Additionally, Omni offers customized batteries. For more information and details, click here.

Lithium-ion	Code	Lead-acid	Code
3 Cells	3 C	12V	1P
4 Cells	4 C	24V	2P
5 Cells	5 C	36V	3P
6 Cells	6 C	48V	4P
7 Cells	7 C
8 Cells	8 C
9 Cells	9 C
10 Cells	10 C
11 Cells	11 C
12 Cells	12 C
13 Cells	13 C
14 Cells	14 C
15 Cells	15 C
